Адаптеры HP - HP NIPPLE
 |
 |
||

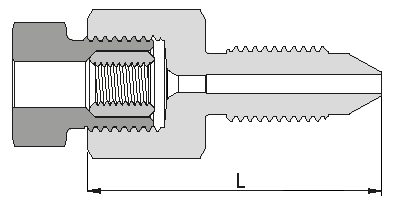

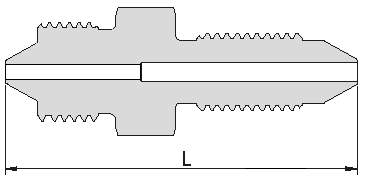

| HP(F) - HP NIPPLE | HP(m) - HP NIPPLE |
Адаптеры на давление 22'000 psi (1515 бар)
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| HP(m) - HP NIPPLE | ||||||
| A-22MH4MN4 | 1515 | 22'000 | 64,1 | 19 | 1/4″ HP(m) | 1/4″ HP nipple |
| A-22MH4MN6 | 1515 | 22'000 | 73,9 | 22 | 1/4″ HP(m) | 3/8″ HP nipple |
| A-22MH4MN9 | 1515 | 22'000 | 94,8 | 32 | 1/4″ HP(m) | 9/16″ HP nipple |
| A-22MH6MN4 | 1515 | 22'000 | 68,9 | 22 | 3/8″ HP(m) | 1/4″ HP nipple |
| A-22MH6MN6 | 1515 | 22'000 | 78,6 | 22 | 3/8″ HP(m) | 3/8″ HP nipple |
| A-22MH6MN9 | 1515 | 22'000 | 99,5 | 32 | 3/8″ HP(m) | 9/16″ HP nipple |
| A-22MH8MN4 | 1515 | 22'000 | 75,3 | 32 | 9/16″ HP(m) | 1/4″ HP nipple |
| A-22MH8MN6 | 1515 | 22'000 | 85,0 | 32 | 9/16″ HP(m) | 3/8″ HP nipple |
| A-22MH8MN9 | 1515 | 22'000 | 105,9 | 32 | 9/16″ HP(m) | 9/16″ HP nipple |
| HP NIPPLE - HP(f) | ||||||
| A-22MN4FH4 | 1515 | 22'000 | 61,1 | 19 | 1/4″ HP nipple | 1/4″ HP(f) |
| A-22MN4FH6 | 1515 | 22'000 | 70,8 | 22 | 1/4″ HP nipple | 3/8″ HP(f) |
| A-22MN4FH9 | 1515 | 22'000 | 91,6 | 32 | 1/4″ HP nipple | 9/16″ HP(f) |
| A-22MN6FH4 | 1515 | 22'000 | 65,9 | 22 | 3/8″ HP nipple | 1/4″ HP(f) |
| A-22MN6FH6 | 1515 | 22'000 | 75,5 | 22 | 3/8″ HP nipple | 3/8″ HP(f) |
| A-22MN6FH9 | 1515 | 22'000 | 96,8 | 32 | 3/8″ HP nipple | 9/16″ HP(f) |
| A-22MN9FH4 | 1515 | 22'000 | 72,1 | 32 | 9/16″ HP nipple | 1/4″ HP(f) |
| A-22MN9FH6 | 1515 | 22'000 | 82,3 | 32 | 9/16″ HP nipple | 3/8″ HP(f) |
| A-22MN9FH9 | 1515 | 22'000 | 102,6 | 32 | 9/16″ HP nipple | 9/16″ HP(f) |
Адаптеры на давление 40'000 psi (2756 бар)
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| HP(m) - HP NIPPLE | ||||||
| A-40MH4MN4 | 2756 | 40'000 | 64,1 | 19 | 1/4″ HP(m) | 1/4″ HP nipple |
| A-40MH4MN6 | 2756 | 40'000 | 73,9 | 22 | 1/4″ HP(m) | 3/8″ HP nipple |
| A-40MH4MN9 | 2756 | 40'000 | 94,8 | 32 | 1/4″ HP(m) | 9/16″ HP nipple |
| A-40MH6MN4 | 2756 | 40'000 | 68,9 | 22 | 3/8″ HP(m) | 1/4″ HP nipple |
| A-40MH6MN6 | 2756 | 40'000 | 78,6 | 22 | 3/8″ HP(m) | 3/8″ HP nipple |
| A-40MH6MN9 | 2756 | 40'000 | 99,5 | 32 | 3/8″ HP(m) | 9/16″ HP nipple |
| A-40MH8MN4 | 2756 | 40'000 | 75,3 | 32 | 9/16″ HP(m) | 1/4″ HP nipple |
| A-40MH8MN6 | 2756 | 40'000 | 85,0 | 32 | 9/16″ HP(m) | 3/8″ HP nipple |
| A-40MH8MN9 | 2756 | 40'000 | 105,9 | 32 | 9/16″ HP(m) | 9/16″ HP nipple |
| HP NIPPLE - HP(f) | ||||||
| A-40MN4FH4 | 2756 | 40'000 | 61,1 | 19 | 1/4″ HP nipple | 1/4″ HP(f) |
| A-40MN4FH6 | 2756 | 40'000 | 70,8 | 22 | 1/4″ HP nipple | 3/8″ HP(f) |
| A-40MN4FH9 | 2756 | 40'000 | 91,6 | 32 | 1/4″ HP nipple | 9/16″ HP(f) |
| A-40MN6FH4 | 2756 | 40'000 | 65,9 | 22 | 3/8″ HP nipple | 1/4″ HP(f) |
| A-40MN6FH6 | 2756 | 40'000 | 75,5 | 22 | 3/8″ HP nipple | 3/8″ HP(f) |
| A-40MN6FH9 | 2756 | 40'000 | 96,8 | 32 | 3/8″ HP nipple | 9/16″ HP(f) |
| A-40MN9FH4 | 2756 | 40'000 | 72,1 | 32 | 9/16″ HP nipple | 1/4″ HP(f) |
| A-40MN9FH6 | 2756 | 40'000 | 82,3 | 32 | 9/16″ HP nipple | 3/8″ HP(f) |
| A-40MN9FH9 | 2756 | 40'000 | 102,6 | 32 | 9/16″ HP nipple | 9/16″ HP(f) |
Адаптеры на давление 60'000 psi (4135 бар)
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| HP(m) - HP NIPPLE | ||||||
| A-60MH4MN4 | 4135 | 60'000 | 64,1 | 19 | 1/4″ HP(m) | 1/4″ HP nipple |
| A-60MH4MN6 | 4135 | 60'000 | 73,9 | 22 | 1/4″ HP(m) | 3/8″ HP nipple |
| A-60MH4MN9 | 4135 | 60'000 | 94,8 | 32 | 1/4″ HP(m) | 9/16″ HP nipple |
| A-60MH6MN4 | 4135 | 60'000 | 68,9 | 22 | 3/8″ HP(m) | 1/4″ HP nipple |
| A-60MH6MN6 | 4135 | 60'000 | 78,6 | 22 | 3/8″ HP(m) | 3/8″ HP nipple |
| A-60MH6MN9 | 4135 | 60'000 | 99,5 | 32 | 3/8″ HP(m) | 9/16″ HP nipple |
| A-60MH8MN4 | 4135 | 60'000 | 75,3 | 32 | 9/16″ HP(m) | 1/4″ HP nipple |
| A-60MH8MN6 | 4135 | 60'000 | 85,0 | 32 | 9/16″ HP(m) | 3/8″ HP nipple |
| A-60MH8MN9 | 4135 | 60'000 | 105,9 | 32 | 9/16″ HP(m) | 9/16″ HP nipple |
| HP NIPPLE - HP(f) | ||||||
| A-60MN4FH4 | 4135 | 60'000 | 61,1 | 19 | 1/4″ HP nipple | 1/4″ HP(f) |
| A-60MN4FH6 | 4135 | 60'000 | 70,8 | 22 | 1/4″ HP nipple | 3/8″ HP(f) |
| A-60MN4FH9 | 4135 | 60'000 | 91,6 | 32 | 1/4″ HP nipple | 9/16″ HP(f) |
| A-60MN6FH4 | 4135 | 60'000 | 65,9 | 22 | 3/8″ HP nipple | 1/4″ HP(f) |
| A-60MN6FH6 | 4135 | 60'000 | 75,5 | 22 | 3/8″ HP nipple | 3/8″ HP(f) |
| A-60MN6FH9 | 4135 | 60'000 | 96,8 | 32 | 3/8″ HP nipple | 9/16″ HP(f) |
| A-60MN9FH4 | 4135 | 60'000 | 72,1 | 32 | 9/16″ HP nipple | 1/4″ HP(f) |
| A-60MN9FH6 | 4135 | 60'000 | 82,3 | 32 | 9/16″ HP nipple | 3/8″ HP(f) |
| A-60MN9FH9 | 4135 | 60'000 | 102,6 | 32 | 9/16″ HP nipple | 9/16″ HP(f) |
