hp-bsp
Адаптеры HP - BSP
 |
 |
 |
 |
| HP(f) - BSP(f) | HP(m) - BSP(m) | HP(m) - BSP(f) | BSP(m) - HP(f) |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| HP(f) - BSP(f) | ||||||
| A-22FH4FB2 | 1515 | 22'000 | 40,0 | 19 | 1/4″ HP(f) | 1/8″ BSP(f) |
| A-22FH4FB4 | 1515 | 22'000 | 41,3 | 19 | 1/4″ HP(f) | 1/4″ BSP(f) |
| A-22FH4FB6 | 1515 | 22'000 | 41,3 | 24 | 1/4″ HP(f) | 3/8″ BSP(f) |
| A-22FH4FB8 | 1515 | 22'000 | 50,8 | 27 | 1/4″ HP(f) | 1/2″ BSP(f) |
| A-22FH6FB2 | 1515 | 22'000 | 41,3 | 22 | 3/8″ HP(f) | 1/8″ BSP(f) |
| A-22FH6FB4 | 1515 | 22'000 | 44,5 | 22 | 3/8″ HP(f) | 1/4″ BSP(f) |
| A-22FH6FB6 | 1515 | 22'000 | 46,0 | 24 | 3/8″ HP(f) | 3/8″ BSP(f) |
| A-22FH6FB8 | 1515 | 22'000 | 54,0 | 27 | 3/8″ HP(f) | 1/2″ BSP(f) |
| A-22FH9FB2 | 1515 | 22'000 | 49,6 | 32 | 9/16″ HP(f) | 1/8″ BSP(f) |
| A-22FH9FB4 | 1515 | 22'000 | 50,8 | 32 | 9/16″ HP(f) | 1/4″ BSP(f) |
| A-22FH9FB6 | 1515 | 22'000 | 50,8 | 32 | 9/16″ HP(f) | 3/8″ BSP(f) |
| A-22FH9FB8 | 1515 | 22'000 | 57,2 | 32 | 9/16″ HP(f) | 1/2″ BSP(f) |

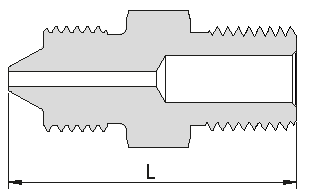

| HP(m) - BSP(m) | ||||||
| A-22MH4MB2 | 1515 | 22'000 | 39,7 | 19 | 1/4″ HP(m) | 1/8″ BSP(m) |
| A-22MH4MB4 | 1515 | 22'000 | 41,3 | 19 | 1/4″ HP(m) | 1/4″ BSP(m) |
| A-22MH4MB6 | 1515 | 22'000 | 47,6 | 24 | 1/4″ HP(m) | 3/8″ BSP(m) |
| A-22MH4MB8 | 1515 | 22'000 | 50,8 | 27 | 1/4″ HP(m) | 1/2″ BSP(m) |
| A-22MH6MB2 | 1515 | 22'000 | 39,7 | 22 | 3/8″ HP(m) | 1/8″ BSP(m) |
| A-22MH6MB4 | 1515 | 22'000 | 41,3 | 22 | 3/8″ HP(m) | 1/4″ BSP(m) |
| A-22MH6MB6 | 1515 | 22'000 | 47,6 | 24 | 3/8″ HP(m) | 3/8″ BSP(m) |
| A-22MH6MB8 | 1515 | 22'000 | 53,5 | 27 | 3/8″ HP(m) | 1/2″ BSP(m) |
| A-22MH9MB2 | 1515 | 22'000 | 44,5 | 32 | 9/16″ HP(m) | 1/8″ BSP(m) |
| A-22MH9MB4 | 1515 | 22'000 | 50,8 | 32 | 9/16″ HP(m) | 1/4″ BSP(m) |
| A-22MH9MB6 | 1515 | 22'000 | 52,4 | 32 | 9/16″ HP(m) | 3/8″ BSP(m) |
| A-22MH9MB8 | 1515 | 22'000 | 57,2 | 32 | 9/16″ HP(m) | 1/2″ BSP(m) |
| HP(m) - BSP(f) | ||||||
| A-22MH4FB2 | 1515 | 22'000 | 35,7 | 19 | 1/4″ HP(m) | 1/8″ BSP(f) |
| A-22MH4FB4 | 1515 | 22'000 | 36,5 | 19 | 1/4″ HP(m) | 1/4″ BSP(f) |
| A-22MH4FB6 | 1515 | 22'000 | 38,1 | 24 | 1/4″ HP(m) | 3/8″ BSP(f) |
| A-22MH4FB8 | 1515 | 22'000 | 44,5 | 27 | 1/4″ HP(m) | 1/2″ BSP(f) |
| A-22MH6FB2 | 1515 | 22'000 | 40,7 | 22 | 3/8″ HP(m) | 1/8″ BSP(f) |
| A-22MH6FB4 | 1515 | 22'000 | 41,3 | 22 | 3/8″ HP(m) | 1/4″ BSP(f) |
| A-22MH6FB6 | 1515 | 22'000 | 42,9 | 24 | 3/8″ HP(m) | 3/8″ BSP(f) |
| A-22MH6FB8 | 1515 | 22'000 | 47,6 | 27 | 3/8″ HP(m) | 1/2″ BSP(f) |
| A-22MH9FB2 | 1515 | 22'000 | 42,9 | 32 | 9/16″ HP(m) | 1/8″ BSP(f) |
| A-22MH9FB4 | 1515 | 22'000 | 44,5 | 32 | 9/16″ HP(m) | 1/4″ BSP(f) |
| A-22MH9FB6 | 1515 | 22'000 | 46,0 | 32 | 9/16″ HP(m) | 3/8″ BSP(f) |
| A-22MH9FB8 | 1515 | 22'000 | 52,4 | 32 | 9/16″ HP(m) | 1/2″ BSP(f) |

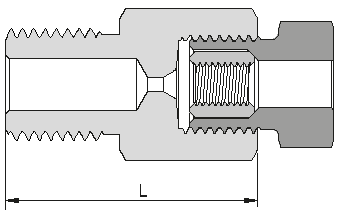

| BSP(m) - HP(f) | ||||||
| A-22MB2FH4 | 1515 | 22'000 | 35,7 | 19 | 1/8″ BSP(m) | 1/4″ HP(f) |
| A-22MB2FH6 | 1515 | 22'000 | 40,7 | 24 | 1/8″ BSP(m) | 3/8″ HP(f) |
| A-22MB2FH9 | 1515 | 22'000 | 42,9 | 32 | 1/8″ BSP(m) | 9/16″ HP(f) |
| A-22MB4FH4 | 1515 | 22'000 | 36,5 | 19 | 1/4″ BSP(m) | 1/4″ HP(f) |
| A-22MB4FH6 | 1515 | 22'000 | 38,1 | 22 | 1/4″ BSP(m) | 3/8″ HP(f) |
| A-22MB4FH9 | 1515 | 22'000 | 44,5 | 32 | 1/4″ BSP(m) | 9/16″ HP(f) |
| A-22MB6FH4 | 1515 | 22'000 | 41,3 | 24 | 3/8″ BSP(m) | 1/4″ HP(f) |
| A-22MB6FH6 | 1515 | 22'000 | 42,9 | 24 | 3/8″ BSP(m) | 3/8″ HP(f) |
| A-22MB6FH9 | 1515 | 22'000 | 47,6 | 32 | 3/8″ BSP(m) | 9/16″ HP(f) |
| A-22MB8FH4 | 1515 | 22'000 | 44,5 | 27 | 1/2″ BSP(m) | 1/4″ HP(f) |
| A-22MB8FH6 | 1515 | 22'000 | 46,0 | 27 | 1/2″ BSP(m) | 3/8″ HP(f) |
| A-22MB8FH9 | 1515 | 22'000 | 52,4 | 32 | 1/2″ BSP(m) | 9/16″ HP(f) |
