Адаптеры BSP - BSP
 |
 |
 |
|

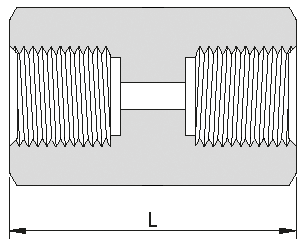

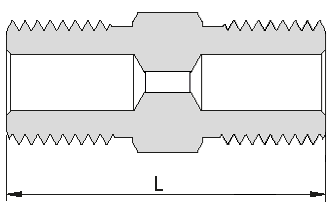

| BSP(f) - BSP(f) | BSP(m) - BSP(m) | BSP(m) - BSP(f) |
Адаптеры на давление 15'000 psi (1035 бар)
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| BSP(f) - BSP(f) | ||||||
| A-15FB2FB2 | 1035 | 15'000 | 33,2 | 14 | 1/8″ BSP(f) | 1/8″ BSP(f) |
| A-15FB2FB4 | 1035 | 15'000 | 34,6 | 19 | 1/8″ BSP(f) | 1/4″ BSP(f) |
| A-15FB2FB6 | 1035 | 15'000 | 35,1 | 24 | 1/8″ BSP(f) | 3/8″ BSP(f) |
| A-15FB2FB8 | 1035 | 15'000 | 35,9 | 27 | 1/8″ BSP(f) | 1/2″ BSP(f) |
| A-15FB4FB4 | 1035 | 15'000 | 36,2 | 19 | 1/4″ BSP(f) | 1/4″ BSP(f) |
| A-15FB4FB6 | 1035 | 15'000 | 36,8 | 24 | 1/4″ BSP(f) | 3/8″ BSP(f) |
| A-15FB4FB8 | 1035 | 15'000 | 42,8 | 27 | 1/4″ BSP(f) | 1/2″ BSP(f) |
| A-15FB6FB6 | 1035 | 15'000 | 38,5 | 24 | 3/8″ BSP(f) | 3/8″ BSP(f) |
| A-15FB6FB8 | 1035 | 15'000 | 43,0 | 27 | 3/8″ BSP(f) | 1/2″ BSP(f) |
| A-15FB8FB8 | 1035 | 15'000 | 50,9 | 27 | 1/2″ BSP(f) | 1/2″ BSP(f) |
| BSP(m) - BSP(m) | ||||||
| A-15MB2MB2 | 1035 | 15'000 | 35,2 | 14 | 1/8″ BSP(m) | 1/8″ BSP(m) |
| A-15MB2MB4 | 1035 | 15'000 | 36,6 | 19 | 1/8″ BSP(m) | 1/4″ BSP(m) |
| A-15MB2MB6 | 1035 | 15'000 | 38,1 | 24 | 1/8″ BSP(m) | 3/8″ BSP(m) |
| A-15MB2MB8 | 1035 | 15'000 | 38,9 | 27 | 1/8″ BSP(m) | 1/2″ BSP(m) |
| A-15MB4MB4 | 1035 | 15'000 | 39,2 | 19 | 1/4″ BSP(m) | 1/4″ BSP(m) |
| A-15MB4MB6 | 1035 | 15'000 | 39,8 | 24 | 1/4″ BSP(m) | 3/8″ BSP(m) |
| A-15MB4MB8 | 1035 | 15'000 | 44,8 | 27 | 1/4″ BSP(m) | 1/2″ BSP(m) |
| A-15MB6MB6 | 1035 | 15'000 | 42,5 | 24 | 3/8″ BSP(m) | 3/8″ BSP(m) |
| A-15MB6MB8 | 1035 | 15'000 | 46,0 | 27 | 3/8″ BSP(m) | 1/2″ BSP(m) |
| A-15MB8MB8 | 1035 | 15'000 | 54,9 | 27 | 1/2″ BSP(m) | 1/2″ BSP(m) |
| BSP(m) - BSP(f) | ||||||
| A-15MB2FB2 | 1035 | 15'000 | 33,4 | 14 | 1/8″ BSP(m) | 1/8″ BSP(f) |
| A-15MB2FB4 | 1035 | 15'000 | 36,5 | 19 | 1/8″ BSP(m) | 1/4″ BSP(f) |
| A-15MB2FB6 | 1035 | 15'000 | 38,3 | 24 | 1/8″ BSP(m) | 3/8″ BSP(f) |
| A-15MB2FB8 | 1035 | 15'000 | 41,2 | 27 | 1/8″ BSP(m) | 1/2″ BSP(f) |
| A-15MB4FB2 | 1035 | 15'000 | 36,5 | 19 | 1/4″ BSP(m) | 1/8″ BSP(f) |
| A-15MB4FB4 | 1035 | 15'000 | 38,5 | 19 | 1/4″ BSP(m) | 1/4″ BSP(f) |
| A-15MB4FB6 | 1035 | 15'000 | 39,0 | 24 | 1/4″ BSP(m) | 3/8″ BSP(f) |
| A-15MB4FB8 | 1035 | 15'000 | 44,1 | 27 | 1/4″ BSP(m) | 1/2″ BSP(f) |
| A-15MB6FB2 | 1035 | 15'000 | 38,3 | 24 | 3/8″ BSP(m) | 1/8″ BSP(f) |
| A-15MB6FB4 | 1035 | 15'000 | 39,2 | 24 | 3/8″ BSP(m) | 1/4″ BSP(f) |
| A-15MB6FB6 | 1035 | 15'000 | 42,0 | 24 | 3/8″ BSP(m) | 3/8″ BSP(f) |
| A-15MB6FB8 | 1035 | 15'000 | 46,0 | 27 | 3/8″ BSP(m) | 1/2″ BSP(f) |
| A-15MB8FB2 | 1035 | 15'000 | 41,3 | 27 | 1/2″ BSP(m) | 1/8″ BSP(f) |
| A-15MB8FB4 | 1035 | 15'000 | 44,1 | 27 | 1/2″ BSP(m) | 1/4″ BSP(f) |
| A-15MB8FB6 | 1035 | 15'000 | 46,0 | 27 | 1/2″ BSP(m) | 3/8″ BSP(f) |
| A-15MB8FB8 | 1035 | 15'000 | 54,0 | 27 | 1/2″ BSP(m) | 1/2″ BSP(f) |
Адаптеры на давление 22'000 psi (1515 бар)
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| BSP(f) - BSP(f) | ||||||
| A-22FB2FB2 | 1515 | 22'000 | 33,2 | 14 | 1/8″ BSP(f) | 1/8″ BSP(f) |
| A-22FB2FB4 | 1515 | 22'000 | 34,6 | 19 | 1/8″ BSP(f) | 1/4″ BSP(f) |
| A-22FB2FB6 | 1515 | 22'000 | 35,1 | 24 | 1/8″ BSP(f) | 3/8″ BSP(f) |
| A-22FB2FB8 | 1515 | 22'000 | 35,9 | 27 | 1/8″ BSP(f) | 1/2″ BSP(f) |
| A-22FB4FB4 | 1515 | 22'000 | 36,2 | 19 | 1/4″ BSP(f) | 1/4″ BSP(f) |
| A-22FB4FB6 | 1515 | 22'000 | 36,8 | 24 | 1/4″ BSP(f) | 3/8″ BSP(f) |
| A-22FB4FB8 | 1515 | 22'000 | 42,8 | 27 | 1/4″ BSP(f) | 1/2″ BSP(f) |
| A-22FB6FB6 | 1515 | 22'000 | 38,5 | 24 | 3/8″ BSP(f) | 3/8″ BSP(f) |
| A-22FB6FB8 | 1515 | 22'000 | 43,0 | 27 | 3/8″ BSP(f) | 1/2″ BSP(f) |
| A-22FB8FB8 | 1515 | 22'000 | 50,9 | 27 | 1/2″ BSP(f) | 1/2″ BSP(f) |
| BSP(m) - BSP(m) | ||||||
| A-22MB2MB2 | 1515 | 22'000 | 35,2 | 14 | 1/8″ BSP(m) | 1/8″ BSP(m) |
| A-22MB2MB4 | 1515 | 22'000 | 36,6 | 19 | 1/8″ BSP(m) | 1/4″ BSP(m) |
| A-22MB2MB6 | 1515 | 22'000 | 38,1 | 24 | 1/8″ BSP(m) | 3/8″ BSP(m) |
| A-22MB2MB8 | 1515 | 22'000 | 38,9 | 27 | 1/8″ BSP(m) | 1/2″ BSP(m) |
| A-22MB4MB4 | 1515 | 22'000 | 39,2 | 19 | 1/4″ BSP(m) | 1/4″ BSP(m) |
| A-22MB4MB6 | 1515 | 22'000 | 39,8 | 24 | 1/4″ BSP(m) | 3/8″ BSP(m) |
| A-22MB4MB8 | 1515 | 22'000 | 44,8 | 27 | 1/4″ BSP(m) | 1/2″ BSP(m) |
| A-22MB6MB6 | 1515 | 22'000 | 42,5 | 24 | 3/8″ BSP(m) | 3/8″ BSP(m) |
| A-22MB6MB8 | 1515 | 22'000 | 46,0 | 27 | 3/8″ BSP(m) | 1/2″ BSP(m) |
| A-22MB8MB8 | 1515 | 22'000 | 54,9 | 27 | 1/2″ BSP(m) | 1/2″ BSP(m) |
| BSP(m) - BSP(f) | ||||||
| A-22MB2FB2 | 1515 | 22'000 | 33,4 | 14 | 1/8″ BSP(m) | 1/8″ BSP(f) |
| A-22MB2FB4 | 1515 | 22'000 | 36,5 | 19 | 1/8″ BSP(m) | 1/4″ BSP(f) |
| A-22MB2FB6 | 1515 | 22'000 | 38,3 | 24 | 1/8″ BSP(m) | 3/8″ BSP(f) |
| A-22MB2FB8 | 1515 | 22'000 | 41,2 | 27 | 1/8″ BSP(m) | 1/2″ BSP(f) |
| A-22MB4FB2 | 1515 | 22'000 | 36,5 | 19 | 1/4″ BSP(m) | 1/8″ BSP(f) |
| A-22MB4FB4 | 1515 | 22'000 | 38,5 | 19 | 1/4″ BSP(m) | 1/4″ BSP(f) |
| A-22MB4FB6 | 1515 | 22'000 | 39,0 | 24 | 1/4″ BSP(m) | 3/8″ BSP(f) |
| A-22MB4FB8 | 1515 | 22'000 | 44,1 | 27 | 1/4″ BSP(m) | 1/2″ BSP(f) |
| A-22MB6FB2 | 1515 | 22'000 | 38,3 | 24 | 3/8″ BSP(m) | 1/8″ BSP(f) |
| A-22MB6FB4 | 1515 | 22'000 | 39,2 | 24 | 3/8″ BSP(m) | 1/4″ BSP(f) |
| A-22MB6FB6 | 1515 | 22'000 | 42,0 | 24 | 3/8″ BSP(m) | 3/8″ BSP(f) |
| A-22MB6FB8 | 1515 | 22'000 | 46,0 | 27 | 3/8″ BSP(m) | 1/2″ BSP(f) |
| A-22MB8FB2 | 1515 | 22'000 | 41,3 | 27 | 1/2″ BSP(m) | 1/8″ BSP(f) |
| A-22MB8FB4 | 1515 | 22'000 | 44,1 | 27 | 1/2″ BSP(m) | 1/4″ BSP(f) |
| A-22MB8FB6 | 1515 | 22'000 | 46,0 | 27 | 1/2″ BSP(m) | 3/8″ BSP(f) |
| A-22MB8FB8 | 1515 | 22'000 | 54,0 | 27 | 1/2″ BSP(m) | 1/2″ BSP(f) |
