Адаптеры BSP - HP NIPPLE
 |
 |
||

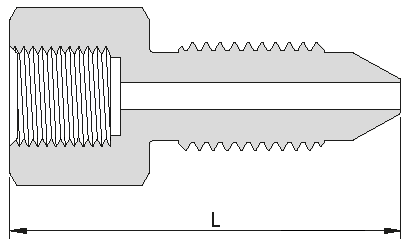

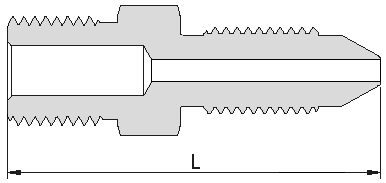

| BSP(f) - HP NIPPLE | BSP(m) - HP NIPPLE |
Адаптеры на давление 15'000 psi (1035 бар)
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| BSP(m) - HP NIPPLE | ||||||
| A-15MB2MN4 | 1035 | 15'000 | 61,5 | 19 | 1/8″ BSP(m) | 1/4″ HP nipple |
| A-15MB2MN6 | 1035 | 15'000 | 71,2 | 22 | 1/8″ BSP(m) | 3/8″ HP nipple |
| A-15MB2MN9 | 1035 | 15'000 | 92,1 | 32 | 1/8″ BSP(m) | 9/16″ HP nipple |
| A-15MB4MN4 | 1035 | 15'000 | 62,6 | 19 | 1/4″ BSP(m) | 1/4″ HP nipple |
| A-15MB4MN6 | 1035 | 15'000 | 72,3 | 22 | 1/4″ BSP(m) | 3/8″ HP nipple |
| A-15MB4MN9 | 1035 | 15'000 | 93,2 | 32 | 1/4″ BSP(m) | 9/16″ HP nipple |
| A-15MB6MN4 | 1035 | 15'000 | 63,3 | 22 | 3/8″ BSP(m) | 1/4″ HP nipple |
| A-15MB6MN6 | 1035 | 15'000 | 73,0 | 24 | 3/8″ BSP(m) | 3/8″ HP nipple |
| A-15MB6MN9 | 1035 | 15'000 | 93,9 | 32 | 3/8″ BSP(m) | 9/16″ HP nipple |
| A-15MB8MN4 | 1035 | 15'000 | 70,5 | 27 | 1/2″ BSP(m) | 1/4″ HP nipple |
| A-15MB8MN6 | 1035 | 15'000 | 80,2 | 27 | 1/2″ BSP(m) | 3/8″ HP nipple |
| A-15MB8MN9 | 1035 | 15'000 | 101,1 | 32 | 1/2″ BSP(m) | 9/16″ HP nipple |
| HP NIPPLE - BSP(f) | ||||||
| A-15MN4FB2 | 1035 | 15'000 | 59,8 | 19 | 1/4″ HP nipple | 1/8″ BSP(F) |
| A-15MN4FB4 | 1035 | 15'000 | 68,9 | 19 | 1/4″ HP nipple | 1/4″ BSP(F) |
| A-15MN4FB6 | 1035 | 15'000 | 89,1 | 24 | 1/4″ HP nipple | 3/8″ BSP(F) |
| A-15MN4FB8 | 1035 | 15'000 | 59,6 | 27 | 1/4″ HP nipple | 1/2″ BSP(F) |
| A-15MN6FB2 | 1035 | 15'000 | 69,3 | 22 | 3/8″ HP nipple | 1/8″ BSP(F) |
| A-15MN6FB4 | 1035 | 15'000 | 90,1 | 22 | 3/8″ HP nipple | 1/4″ BSP(F) |
| A-15MN6FB6 | 1035 | 15'000 | 60,2 | 24 | 3/8″ HP nipple | 3/8″ BSP(F) |
| A-15MN6FB8 | 1035 | 15'000 | 70,8 | 27 | 3/8″ HP nipple | 1/2″ BSP(F) |
| A-15MN9FB2 | 1035 | 15'000 | 90,3 | 32 | 9/16″ HP nipple | 1/8″ BSP(F) |
| A-15MN9FB4 | 1035 | 15'000 | 67,8 | 32 | 9/16″ HP nipple | 1/4″ BSP(F) |
| A-15MN9FB6 | 1035 | 15'000 | 78,0 | 32 | 9/16″ HP nipple | 3/8″ BSP(F) |
| A-15MN9FB8 | 1035 | 15'000 | 99,2 | 32 | 9/16″ HP nipple | 1/2″ BSP(F) |
Адаптеры на давление 22'000 psi (1515 бар)
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| BSP(m) - HP NIPPLE | ||||||
| A-22MB2MN4 | 1515 | 22'000 | 61,5 | 19 | 1/8″ BSP(m) | 1/4″ HP nipple |
| A-22MB2MN6 | 1515 | 22'000 | 71,2 | 22 | 1/8″ BSP(m) | 3/8″ HP nipple |
| A-22MB2MN9 | 1515 | 22'000 | 92,1 | 32 | 1/8″ BSP(m) | 9/16″ HP nipple |
| A-22MB4MN4 | 1515 | 22'000 | 62,6 | 19 | 1/4″ BSP(m) | 1/4″ HP nipple |
| A-22MB4MN6 | 1515 | 22'000 | 72,3 | 22 | 1/4″ BSP(m) | 3/8″ HP nipple |
| A-22MB4MN9 | 1515 | 22'000 | 93,2 | 32 | 1/4″ BSP(m) | 9/16″ HP nipple |
| A-22MB6MN4 | 1515 | 22'000 | 63,3 | 22 | 3/8″ BSP(m) | 1/4″ HP nipple |
| A-22MB6MN6 | 1515 | 22'000 | 73,0 | 24 | 3/8″ BSP(m) | 3/8″ HP nipple |
| A-22MB6MN9 | 1515 | 22'000 | 93,9 | 32 | 3/8″ BSP(m) | 9/16″ HP nipple |
| A-22MB8MN4 | 1515 | 22'000 | 70,5 | 27 | 1/2″ BSP(m) | 1/4″ HP nipple |
| A-22MB8MN6 | 1515 | 22'000 | 80,2 | 27 | 1/2″ BSP(m) | 3/8″ HP nipple |
| A-22MB8MN9 | 1515 | 22'000 | 101,1 | 32 | 1/2″ BSP(m) | 9/16″ HP nipple |
| HP NIPPLE - BSP(f) | ||||||
| A-22MN4FB2 | 1515 | 22'000 | 59,8 | 19 | 1/4″ HP nipple | 1/8″ BSP(F) |
| A-22MN4FB4 | 1515 | 22'000 | 68,9 | 19 | 1/4″ HP nipple | 1/4″ BSP(F) |
| A-22MN4FB6 | 1515 | 22'000 | 89,1 | 24 | 1/4″ HP nipple | 3/8″ BSP(F) |
| A-22MN4FB8 | 1515 | 22'000 | 59,6 | 27 | 1/4″ HP nipple | 1/2″ BSP(F) |
| A-22MN6FB2 | 1515 | 22'000 | 69,3 | 22 | 3/8″ HP nipple | 1/8″ BSP(F) |
| A-22MN6FB4 | 1515 | 22'000 | 90,1 | 22 | 3/8″ HP nipple | 1/4″ BSP(F) |
| A-22MN6FB6 | 1515 | 22'000 | 60,2 | 24 | 3/8″ HP nipple | 3/8″ BSP(F) |
| A-22MN6FB8 | 1515 | 22'000 | 70,8 | 27 | 3/8″ HP nipple | 1/2″ BSP(F) |
| A-22MN9FB2 | 1515 | 22'000 | 90,3 | 32 | 9/16″ HP nipple | 1/8″ BSP(F) |
| A-22MN9FB4 | 1515 | 22'000 | 67,8 | 32 | 9/16″ HP nipple | 1/4″ BSP(F) |
| A-22MN9FB6 | 1515 | 22'000 | 78,0 | 32 | 9/16″ HP nipple | 3/8″ BSP(F) |
| A-22MN9FB8 | 1515 | 22'000 | 99,2 | 32 | 9/16″ HP nipple | 1/2″ BSP(F) |
