npt-nipple
Адаптеры NPT - HP NIPPLE
 |
 |
||
| NPT(f) - HP NIPPLE | NPT(m) - HP NIPPLE |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||

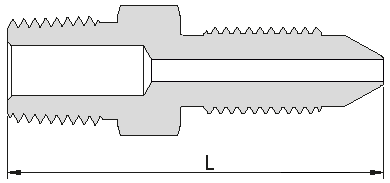

| NPT(m) - HP NIPPLE | ||||||
| A-15MP4MN4 | 1035 | 15'000 | 62,5 | 19 | 1/4″ NPT(m) | 1/4″ HP nipple |
| A-15MP4MN6 | 1035 | 15'000 | 72,3 | 22 | 1/4″ NPT(m) | 3/8″ HP nipple |
| A-15MP4MN9 | 1035 | 15'000 | 93,2 | 32 | 1/4″ NPT(m) | 9/16″ HP nipple |
| A-15MP6MN4 | 1035 | 15'000 | 63,3 | 24 | 3/8″ NPT(m) | 1/4″ HP nipple |
| A-15MP6MN6 | 1035 | 15'000 | 73,0 | 24 | 3/8″ NPT(m) | 3/8″ HP nipple |
| A-15MP6MN9 | 1035 | 15'000 | 93,9 | 32 | 3/8″ NPT(m) | 9/16″ HP nipple |
| A-15MP8MN4 | 1035 | 15'000 | 70,5 | 27 | 1/2″ NPT(m) | 1/4″ HP nipple |
| A-15MP8MN6 | 1035 | 15'000 | 80,2 | 27 | 1/2″ NPT(m) | 3/8″ HP nipple |
| A-15MP8MN9 | 1035 | 15'000 | 101,1 | 32 | 1/2″ NPT(m) | 9/16″ HP nipple |

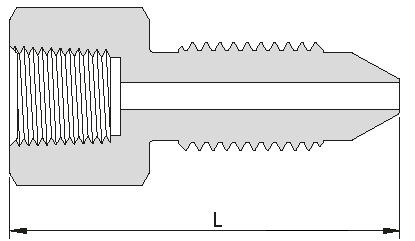

| HP NIPPLE - NPT(f) | ||||||
| A-15MN4FP4 | 1035 | 15'000 | 60,3 | 19 | 1/4″ HP nipple | 1/4″ NPT(f) |
| A-15MN4FP6 | 1035 | 15'000 | 70,1 | 24 | 1/4″ HP nipple | 3/8″ NPT(f) |
| A-15MN4FP8 | 1035 | 15'000 | 91,0 | 27 | 1/4″ HP nipple | 1/2″ NPT(f) |
| A-15MN6FP4 | 1035 | 15'000 | 61,1 | 22 | 3/8″ HP nipple | 1/4″ NPT(f) |
| A-15MN6FP6 | 1035 | 15'000 | 70,4 | 24 | 3/8″ HP nipple | 3/8″ NPT(f) |
| A-15MN6FP8 | 1035 | 15'000 | 90,6 | 27 | 3/8″ HP nipple | 1/2″ NPT(f) |
| A-15MN9FP4 | 1035 | 15'000 | 68,2 | 32 | 9/16″ HP nipple | 1/4″ NPT(f) |
| A-15MN9FP6 | 1035 | 15'000 | 77,4 | 32 | 9/16″ HP nipple | 3/8″ NPT(f) |
| A-15MN9FP8 | 1035 | 15'000 | 99,3 | 32 | 9/16″ HP nipple | 1/2″ NPT(f) |
