npt-bsp
Адаптеры NPT - BSP
 |
 |
 |
 |
| NPT(f) - BSP(f) | NPT(m) - BSP(m) | NPT(m) - BSP(f) | BSP(m) - NPT(f) |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||

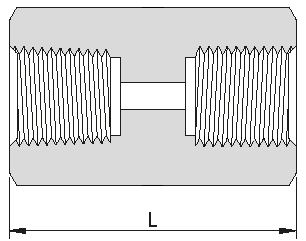

| NPT(f) - BSP(f) | ||||||
| A-15FP4FB2 | 1035 | 15'000 | 40,0 | 19 | 1/4″ NPT(f) | 1/8″ BSP(f) |
| A-15FP4FB4 | 1035 | 15'000 | 41,3 | 19 | 1/4″ NPT(f) | 1/4″ BSP(f) |
| A-15FP4FB6 | 1035 | 15'000 | 41,3 | 24 | 1/4″ NPT(f) | 3/8″ BSP(f) |
| A-15FP4FB8 | 1035 | 15'000 | 50,8 | 27 | 1/4″ NPT(f) | 1/2″ BSP(f) |
| A-15FP6FB2 | 1035 | 15'000 | 41,3 | 24 | 3/8″ NPT(f) | 1/8″ BSP(f) |
| A-15FP6FB4 | 1035 | 15'000 | 44,5 | 24 | 3/8″ NPT(f) | 1/4″ BSP(f) |
| A-15FP6FB6 | 1035 | 15'000 | 46,0 | 24 | 3/8″ NPT(f) | 3/8″ BSP(f) |
| A-15FP6FB8 | 1035 | 15'000 | 54,0 | 27 | 3/8″ NPT(f) | 1/2″ BSP(f) |
| A-15FP8FB2 | 1035 | 15'000 | 49,6 | 27 | 1/2″ NPT(f) | 1/8″ BSP(f) |
| A-15FP8FB4 | 1035 | 15'000 | 50,8 | 27 | 1/2″ NPT(f) | 1/4″ BSP(f) |
| A-15FP8FB6 | 1035 | 15'000 | 50,8 | 27 | 1/2″ NPT(f) | 3/8″ BSP(f) |
| A-15FP8FB8 | 1035 | 15'000 | 57,2 | 27 | 1/2″ NPT(f) | 1/2″ BSP(f) |

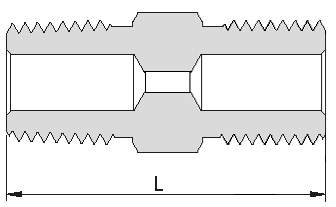

| NPT(m) - BSP(m) | ||||||
| A-15MP4MB2 | 1035 | 15'000 | 39,7 | 19 | 1/4″ NPT(m) | 1/8″ BSP(m) |
| A-15MP4MB4 | 1035 | 15'000 | 41,3 | 19 | 1/4″ NPT(m) | 1/4″ BSP(m) |
| A-15MP4MB6 | 1035 | 15'000 | 47,6 | 24 | 1/4″ NPT(m) | 3/8″ BSP(m) |
| A-15MP4MB8 | 1035 | 15'000 | 50,8 | 27 | 1/4″ NPT(m) | 1/2″ BSP(m) |
| A-15MP6MB2 | 1035 | 15'000 | 39,7 | 24 | 3/8″ NPT(m) | 1/8″ BSP(m) |
| A-15MP6MB4 | 1035 | 15'000 | 41,3 | 24 | 3/8″ NPT(m) | 1/4″ BSP(m) |
| A-15MP6MB6 | 1035 | 15'000 | 47,6 | 24 | 3/8″ NPT(m) | 3/8″ BSP(m) |
| A-15MP6MB8 | 1035 | 15'000 | 53,5 | 27 | 3/8″ NPT(m) | 1/2″ BSP(m) |
| A-15MP8MB2 | 1035 | 15'000 | 44,5 | 27 | 1/2″ NPT(m) | 1/8″ BSP(m) |
| A-15MP8MB4 | 1035 | 15'000 | 50,8 | 27 | 1/2″ NPT(m) | 1/4″ BSP(m) |
| A-15MP8MB6 | 1035 | 15'000 | 52,4 | 27 | 1/2″ NPT(m) | 3/8″ BSP(m) |
| A-15MP8MB8 | 1035 | 15'000 | 57,2 | 27 | 1/2″ NPT(m) | 1/2″ BSP(m) |
| NPT(m) - BSP(f) | ||||||
| A-15MP4FB2 | 1035 | 15'000 | 35,7 | 19 | 1/4″ NPT(m) | 1/8″ BSP(f) |
| A-15MP4FB4 | 1035 | 15'000 | 36,5 | 19 | 1/4″ NPT(m) | 1/4″ BSP(f) |
| A-15MP4FB6 | 1035 | 15'000 | 38,1 | 24 | 1/4″ NPT(m) | 3/8″ BSP(f) |
| A-15MP4FB8 | 1035 | 15'000 | 44,5 | 27 | 1/4″ NPT(m) | 1/2″ BSP(f) |
| A-15MP6FB2 | 1035 | 15'000 | 40,7 | 24 | 3/8″ NPT(m) | 1/8″ BSP(f) |
| A-15MP6FB4 | 1035 | 15'000 | 41,3 | 24 | 3/8″ NPT(m) | 1/4″ BSP(f) |
| A-15MP6FB6 | 1035 | 15'000 | 42,9 | 24 | 3/8″ NPT(m) | 3/8″ BSP(f) |
| A-15MP6FB8 | 1035 | 15'000 | 47,6 | 27 | 3/8″ NPT(m) | 1/2″ BSP(f) |
| A-15MP8FB2 | 1035 | 15'000 | 42,9 | 27 | 1/2″ NPT(m) | 1/8″ BSP(f) |
| A-15MP8FB4 | 1035 | 15'000 | 44,5 | 27 | 1/2″ NPT(m) | 1/4″ BSP(f) |
| A-15MP8FB6 | 1035 | 15'000 | 46,0 | 27 | 1/2″ NPT(m) | 3/8″ BSP(f) |
| A-15MP8FB8 | 1035 | 15'000 | 52,4 | 27 | 1/2″ NPT(m) | 1/2″ BSP(f) |
| BSP(m) - NPT(f) | ||||||
| A-15MB2FP4 | 1035 | 15'000 | 35,7 | 19 | 1/8″ BSP(m) | 1/4″ NPT(f) |
| A-15MB2FP6 | 1035 | 15'000 | 40,7 | 24 | 1/8″ BSP(m) | 3/8″ NPT(f) |
| A-15MB2FP8 | 1035 | 15'000 | 42,9 | 27 | 1/8″ BSP(m) | 1/2″ NPT(f) |
| A-15MB4FP4 | 1035 | 15'000 | 36,5 | 19 | 1/4″ BSP(m) | 1/4″ NPT(f) |
| A-15MB4FP6 | 1035 | 15'000 | 38,1 | 24 | 1/4″ BSP(m) | 3/8″ NPT(f) |
| A-15MB4FP8 | 1035 | 15'000 | 44,5 | 27 | 1/4″ BSP(m) | 1/2″ NPT(f) |
| A-15MB6FP4 | 1035 | 15'000 | 41,3 | 24 | 3/8″ BSP(m) | 1/4″ NPT(f) |
| A-15MB6FP6 | 1035 | 15'000 | 42,9 | 24 | 3/8″ BSP(m) | 3/8″ NPT(f) |
| A-15MB6FP8 | 1035 | 15'000 | 47,6 | 27 | 3/8″ BSP(m) | 1/2″ NPT(f) |
| A-15MB8FP4 | 1035 | 15'000 | 44,5 | 27 | 1/2″ BSP(m) | 1/4″ NPT(f) |
| A-15MB8FP6 | 1035 | 15'000 | 46,0 | 27 | 1/2″ BSP(m) | 3/8″ NPT(f) |
| A-15MB8FP8 | 1035 | 15'000 | 52,4 | 27 | 1/2″ BSP(m) | 1/2″ NPT(f) |
