hp-npt
Адаптеры HP - NPT
 |
 |
 |
 |
| HP(f) - NPT(f) | HP(m) - NPT (m) | HP(m) - NPT(f) | NPT(m) - HP(f) |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| HP(f) - NPT(f) | ||||||
| A-15FH4FP4 | 1035 | 15'000 | 41,3 | 19 | 1/4″ HP(f) | 1/4″ NPT(f) |
| A-15FH4FP6 | 1035 | 15'000 | 41,3 | 24 | 1/4″ HP(f) | 3/8″ NPT(f) |
| A-15FH4FP8 | 1035 | 15'000 | 50,8 | 27 | 1/4″ HP(f) | 1/2″ NPT(f) |
| A-15FH6FP4 | 1035 | 15'000 | 47,6 | 22 | 3/8″ HP(f) | 1/4″ NPT(f) |
| A-15FH6FP6 | 1035 | 15'000 | 47,6 | 24 | 3/8″ HP(f) | 3/8″ NPT(f) |
| A-15FH6FP8 | 1035 | 15'000 | 54,0 | 27 | 3/8″ HP(f) | 1/2″ NPT(f) |
| A-15FH9FP4 | 1035 | 15'000 | 50,8 | 32 | 9/16″ HP(f) | 1/4″ NPT(f) |
| A-15FH9FP6 | 1035 | 15'000 | 50,8 | 32 | 9/16″ HP(f) | 3/8″ NPT(f) |
| A-15FH9FP8 | 1035 | 15'000 | 60,3 | 32 | 9/16″ HP(f) | 1/2″ NPT(f) |

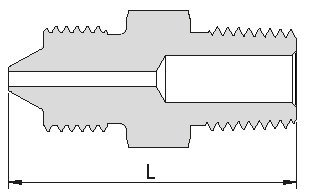

| HP(m) - NPT(m) | ||||||
| A-15MH4MP4 | 1035 | 15'000 | 39,7 | 19 | 1/4″ HP(m) | 1/4″ NPT(m) |
| A-15MH4MP6 | 1035 | 15'000 | 39,7 | 24 | 1/4″ HP(m) | 3/8″ NPT(m) |
| A-15MH4MP8 | 1035 | 15'000 | 46,0 | 27 | 1/4″ HP(m) | 1/2″ NPT(m) |
| A-15MH6MP4 | 1035 | 15'000 | 47,6 | 22 | 3/8″ HP(m) | 1/4″ NPT(m) |
| A-15MH6MP6 | 1035 | 15'000 | 47,6 | 24 | 3/8″ HP(m) | 3/8″ NPT(m) |
| A-15MH6MP8 | 1035 | 15'000 | 52,4 | 27 | 3/8″ HP(m) | 1/2″ NPT(m) |
| A-15MH9MP4 | 1035 | 15'000 | 54,0 | 32 | 9/16″ HP(m) | 1/4″ NPT(m) |
| A-15MH9MP6 | 1035 | 15'000 | 54,0 | 32 | 9/16″ HP(m) | 3/8″ NPT(m) |
| A-15MH9MP8 | 1035 | 15'000 | 60,3 | 32 | 9/16″ HP(m) | 1/2″ NPT(m) |
| HP(m) - NPT(f) | ||||||
| A-15MH4FP4 | 1035 | 15'000 | 34,9 | 19 | 1/4″ HP(m) | 1/4″ NPT(f) |
| A-15MH4FP6 | 1035 | 15'000 | 36,5 | 24 | 1/4″ HP(m) | 3/8″ NPT(f) |
| A-15MH4FP8 | 1035 | 15'000 | 42,9 | 27 | 1/4″ HP(m) | 1/2″ NPT(f) |
| A-15MH6FP4 | 1035 | 15'000 | 41,3 | 22 | 3/8″ HP(m) | 1/4″ NPT(f) |
| A-15MH6FP6 | 1035 | 15'000 | 42,9 | 24 | 3/8″ HP(m) | 3/8″ NPT(f) |
| A-15MH6FP8 | 1035 | 15'000 | 49,2 | 27 | 3/8″ HP(m) | 1/2″ NPT(f) |
| A-15MH9FP4 | 1035 | 15'000 | 44,5 | 32 | 9/16″ HP(m) | 1/4″ NPT(f) |
| A-15MH9FP6 | 1035 | 15'000 | 46,0 | 32 | 9/16″ HP(m) | 3/8″ NPT(f) |
| A-15MH9FP8 | 1035 | 15'000 | 54,0 | 32 | 9/16″ HP(m) | 1/2″ NPT(f) |

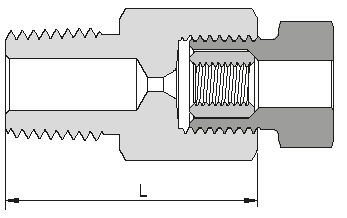

| NPT(m) - HP(f) | ||||||
| A-15MP4FH4 | 1035 | 15'000 | 34,9 | 19 | 1/4″ NPT(m) | 1/4″ HP(f) |
| A-15MP4FH6 | 1035 | 15'000 | 41,3 | 22 | 1/4″ NPT(m) | 3/8″ HP(f) |
| A-15MP4FH9 | 1035 | 15'000 | 44,5 | 32 | 1/4″ NPT(m) | 9/16″ HP(f) |
| A-15MP6FH4 | 1035 | 15'000 | 34,9 | 24 | 3/8″ NPT(m) | 1/4″ HP(f) |
| A-15MP6FH6 | 1035 | 15'000 | 41,3 | 24 | 3/8″ NPT(m) | 3/8″ HP(f) |
| A-15MP6FH9 | 1035 | 15'000 | 44,5 | 32 | 3/8″ NPT(m) | 9/16″ HP(f) |
| A-15MP8FH4 | 1035 | 15'000 | 38,1 | 27 | 1/2″ NPT(m) | 1/4″ HP(f) |
| A-15MP8FH6 | 1035 | 15'000 | 44,5 | 27 | 1/2″ NPT(m) | 3/8″ HP(f) |
| A-15MP8FH9 | 1035 | 15'000 | 47,6 | 32 | 1/2″ NPT(m) | 9/16″ HP(f) |
