Адаптеры MP - BSP
 |
 |
 |
 |
| MP(f) - BSP(f) | MP(m) - BSP(m) | MP(m) - BSP(f) | BSP(m) - MP(f) |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| MP(f) - BSP(f) | ||||||
| A-15FM4FB2 | 1035 | 15'000 | 40,0 | 17 | 1/4″ MP(f) | 1/8″ BSP(f) |
| A-15FM4FB4 | 1035 | 15'000 | 41,3 | 17 | 1/4″ MP(f) | 1/4″ BSP(f) |
| A-15FM4FB6 | 1035 | 15'000 | 41,3 | 24 | 1/4″ MP(f) | 3/8″ BSP(f) |
| A-15FM4FB8 | 1035 | 15'000 | 50,8 | 27 | 1/4″ MP(f) | 1/2″ BSP(f) |
| A-15FM6FB2 | 1035 | 15'000 | 41,3 | 19 | 3/8″ MP(f) | 1/8″ BSP(f) |
| A-15FM6FB4 | 1035 | 15'000 | 44,5 | 19 | 3/8″ MP(f) | 1/4″ BSP(f) |
| A-15FM6FB6 | 1035 | 15'000 | 46,0 | 24 | 3/8″ MP(f) | 3/8″ BSP(f) |
| A-15FM6FB8 | 1035 | 15'000 | 54,0 | 27 | 3/8″ MP(f) | 1/2″ BSP(f) |
| A-15FM9FB2 | 1035 | 15'000 | 49,6 | 30 | 9/16″ MP(f) | 1/8″ BSP(f) |
| A-15FM9FB4 | 1035 | 15'000 | 50,8 | 30 | 9/16″ MP(f) | 1/4″ BSP(f) |
| A-15FM9FB6 | 1035 | 15'000 | 50,8 | 30 | 9/16″ MP(f) | 3/8″ BSP(f) |
| A-15FM9FB8 | 1035 | 15'000 | 57,2 | 30 | 9/16″ MP(f) | 1/2″ BSP(f) |

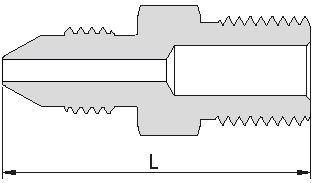

| MP(m) - BSP(m) | ||||||
| A-15MM4MB2 | 1035 | 15'000 | 39,7 | 17 | 1/4″ МP(m) | 1/8″ BSP(m) |
| A-15MM4MB4 | 1035 | 15'000 | 41,3 | 19 | 1/4″ МP(m) | 1/4″ BSP(m) |
| A-15MM4MB6 | 1035 | 15'000 | 47,6 | 24 | 1/4″ МP(m) | 3/8″ BSP(m) |
| A-15MM4MB8 | 1035 | 15'000 | 50,8 | 27 | 1/4″ МP(m) | 1/2″ BSP(m) |
| A-15MM6MB2 | 1035 | 15'000 | 39,7 | 19 | 3/8″ МP(m) | 1/8″ BSP(m) |
| A-15MM6MB4 | 1035 | 15'000 | 41,3 | 19 | 3/8″ МP(m) | 1/4″ BSP(m) |
| A-15MM6MB6 | 1035 | 15'000 | 47,6 | 24 | 3/8″ МP(m) | 3/8″ BSP(m) |
| A-15MM6MB8 | 1035 | 15'000 | 53,5 | 27 | 3/8″ МP(m) | 1/2″ BSP(m) |
| A-15MM9MB2 | 1035 | 15'000 | 44,5 | 30 | 9/16″ МP(m) | 1/8″ BSP(m) |
| A-15MM9MB4 | 1035 | 15'000 | 50,8 | 30 | 9/16″ МP(m) | 1/4″ BSP(m) |
| A-15MM9MB6 | 1035 | 15'000 | 52,4 | 30 | 9/16″ МP(m) | 3/8″ BSP(m) |
| A-15MM9MB8 | 1035 | 15'000 | 57,2 | 30 | 9/16″ МP(m) | 1/2″ BSP(m) |

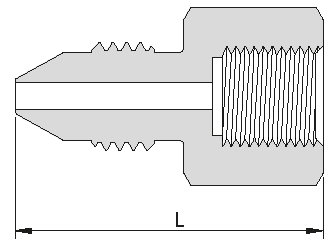

| MP(m) - BSP(f) | ||||||
| A-15MM4FB2 | 1035 | 15'000 | 35,7 | 17 | 1/4″ МP(m) | 1/8″ BSP(f) |
| A-15MM4FB4 | 1035 | 15'000 | 36,5 | 19 | 1/4″ МP(m) | 1/4″ BSP(f) |
| A-15MM4FB6 | 1035 | 15'000 | 38,1 | 24 | 1/4″ МP(m) | 3/8″ BSP(f) |
| A-15MM4FB8 | 1035 | 15'000 | 44,5 | 27 | 1/4″ МP(m) | 1/2″ BSP(f) |
| A-15MM6FB2 | 1035 | 15'000 | 40,7 | 19 | 3/8″ МP(m) | 1/8″ BSP(f) |
| A-15MM6FB4 | 1035 | 15'000 | 41,3 | 19 | 3/8″ МP(m) | 1/4″ BSP(f) |
| A-15MM6FB6 | 1035 | 15'000 | 42,9 | 24 | 3/8″ МP(m) | 3/8″ BSP(f) |
| A-15MM6FB8 | 1035 | 15'000 | 47,6 | 27 | 3/8″ МP(m) | 1/2″ BSP(f) |
| A-15MM9FB2 | 1035 | 15'000 | 42,9 | 30 | 9/16″ МP(m) | 1/8″ BSP(f) |
| A-15MM9FB4 | 1035 | 15'000 | 44,5 | 30 | 9/16″ МP(m) | 1/4″ BSP(f) |
| A-15MM9FB6 | 1035 | 15'000 | 46,0 | 30 | 9/16″ МP(m) | 3/8″ BSP(f) |
| A-15MM9FB8 | 1035 | 15'000 | 52,4 | 30 | 9/16″ МP(m) | 1/2″ BSP(f) |

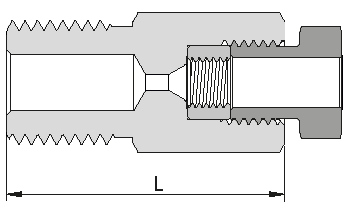

| BSP(m) - MP(f) | ||||||
| A-15MB2FM4 | 1035 | 15'000 | 35,7 | 17 | 1/8″ BSP(m) | 1/4″ МP(f) |
| A-15MB2FM6 | 1035 | 15'000 | 40,7 | 19 | 1/8″ BSP(m) | 3/8″ МP(f) |
| A-15MB2FM9 | 1035 | 15'000 | 42,9 | 30 | 1/8″ BSP(m) | 9/16″ МP(f) |
| A-15MB4FM4 | 1035 | 15'000 | 36,5 | 19 | 1/4″ BSP(m) | 1/4″ МP(f) |
| A-15MB4FM6 | 1035 | 15'000 | 38,1 | 19 | 1/4″ BSP(m) | 3/8″ МP(f) |
| A-15MB4FM9 | 1035 | 15'000 | 44,5 | 30 | 1/4″ BSP(m) | 9/16″ МP(f) |
| A-15MB6FM4 | 1035 | 15'000 | 41,3 | 24 | 3/8″ BSP(m) | 1/4″ МP(f) |
| A-15MB6FM6 | 1035 | 15'000 | 42,9 | 24 | 3/8″ BSP(m) | 3/8″ МP(f) |
| A-15MB6FM9 | 1035 | 15'000 | 47,6 | 30 | 3/8″ BSP(m) | 9/16″ МP(f) |
| A-15MB8FM4 | 1035 | 15'000 | 44,5 | 27 | 1/2″ BSP(m) | 1/4″ МP(f) |
| A-15MB8FM6 | 1035 | 15'000 | 46,0 | 27 | 1/2″ BSP(m) | 3/8″ МP(f) |
| A-15MB8FM9 | 1035 | 15'000 | 52,4 | 30 | 1/2″ BSP(m) | 9/16″ МP(f) |
