Адаптеры MP - HP
 |
 |
 |
 |
| HP(f) - MP(f) | HP(m) - MP (m) | HP(m) - MP(f) | MP(m) - HP(f) |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||

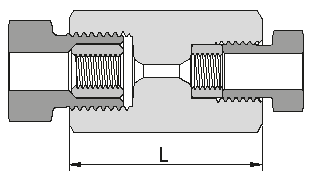

| HP(f) - MP(f) | ||||||
| A-15FH4FM4 | 1035 | 15'000 | 40,3 | 19 | 1/4″ HP(f) | 1/4″ MP(f) |
| A-15FH4FM6 | 1035 | 15'000 | 43,4 | 19 | 1/4″ HP(f) | 3/8″ MP(f) |
| A-15FH4FM9 | 1035 | 15'000 | 49,2 | 30 | 1/4″ HP(f) | 9/16″ MP(f) |
| A-15FH6FM4 | 1035 | 15'000 | 48,0 | 22 | 3/8″ HP(f) | 1/4″ MP(f) |
| A-15FH6FM6 | 1035 | 15'000 | 50,8 | 22 | 3/8″ HP(f) | 3/8″ MP(f) |
| A-15FH6FM9 | 1035 | 15'000 | 57,0 | 30 | 3/8″ HP(f) | 9/16″ MP(f) |
| A-15FH9FM4 | 1035 | 15'000 | 54,5 | 32 | 9/16″ HP(f) | 1/4″ MP(f) |
| A-15FH9FM6 | 1035 | 15'000 | 56,9 | 32 | 9/16″ HP(f) | 3/8″ MP(f) |
| A-15FH9FM9 | 1035 | 15'000 | 61,9 | 32 | 9/16″ HP(f) | 9/16″ MP(f) |
| HP(m) - MP(m) | ||||||
| A-15MH4MM4 | 1035 | 15'000 | 42,9 | 19 | 1/4″ HP(m) | 1/4″ MP(m) |
| A-15MH4MM6 | 1035 | 15'000 | 46,0 | 22 | 1/4″ HP(m) | 3/8″ MP(m) |
| A-15MH4MM9 | 1035 | 15'000 | 52,4 | 30 | 1/4″ HP(m) | 9/16″ MP(m) |
| A-15MH6MM4 | 1035 | 15'000 | 50,8 | 22 | 3/8″ HP(m) | 1/4″ MP(m) |
| A-15MH6MM6 | 1035 | 15'000 | 54,0 | 22 | 3/8″ HP(m) | 3/8″ MP(m) |
| A-15MH6MM9 | 1035 | 15'000 | 60,3 | 30 | 3/8″ HP(m) | 9/16″ MP(m) |
| A-15MH9MM4 | 1035 | 15'000 | 57,2 | 32 | 9/16″ HP(m) | 1/4″ MP(m) |
| A-15MH9MM6 | 1035 | 15'000 | 61,9 | 32 | 9/16″ HP(m) | 3/8″ MP(m) |
| A-15MH9MM9 | 1035 | 15'000 | 66,7 | 32 | 9/16″ HP(m) | 9/16″ MP(m) |

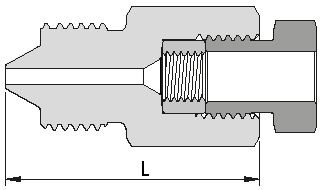

| HP(m) - MP(f) | ||||||
| A-15MH4FM4 | 1035 | 15'000 | 33,3 | 19 | 1/4″ HP(m) | 1/4″ MP(f) |
| A-15MH4FM6 | 1035 | 15'000 | 38,1 | 19 | 1/4″ HP(m) | 3/8″ MP(f) |
| A-15MH4FM9 | 1035 | 15'000 | 46,0 | 30 | 1/4″ HP(m) | 9/16″ MP(f) |
| A-15MH6FM4 | 1035 | 15'000 | 38,1 | 22 | 3/8″ HP(m) | 1/4″ MP(f) |
| A-15MH6FM6 | 1035 | 15'000 | 42,9 | 22 | 3/8″ HP(m) | 3/8″ MP(f) |
| A-15MH6FM9 | 1035 | 15'000 | 54,0 | 30 | 3/8″ HP(m) | 9/16″ MP(f) |
| A-15MH9FM4 | 1035 | 15'000 | 41,3 | 32 | 9/16″ HP(m) | 1/4″ MP(f) |
| A-15MH9FM6 | 1035 | 15'000 | 44,5 | 32 | 9/16″ HP(m) | 3/8″ MP(f) |
| A-15MH9FM9 | 1035 | 15'000 | 54,0 | 32 | 9/16″ HP(m) | 9/16″ MP(f) |

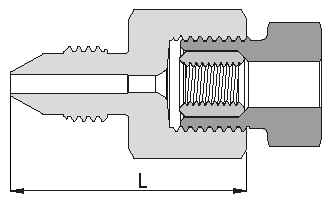

| MP(m) - HP(f) | ||||||
| A-15MM4FH4 | 1035 | 15'000 | 34,9 | 19 | 1/4″ MP(m) | 1/4″ HP(f) |
| A-15MM4FH6 | 1035 | 15'000 | 42,3 | 22 | 1/4″ MP(m) | 3/8″ HP(f) |
| A-15MM4FH9 | 1035 | 15'000 | 47,6 | 32 | 1/4″ MP(m) | 9/16″ HP(f) |
| A-15MM6FH4 | 1035 | 15'000 | 38,1 | 19 | 3/8″ MP(m) | 1/4″ HP(f) |
| A-15MM6FH6 | 1035 | 15'000 | 46,0 | 22 | 3/8″ MP(m) | 3/8″ HP(f) |
| A-15MM6FH9 | 1035 | 15'000 | 50,8 | 32 | 3/8″ MP(m) | 9/16″ HP(f) |
| A-15MM9FH4 | 1035 | 15'000 | 42,9 | 30 | 9/16″ MP(m) | 1/4″ HP(f) |
| A-15MM9FH6 | 1035 | 15'000 | 49,2 | 30 | 9/16″ MP(m) | 3/8″ HP(f) |
| A-15MM9FH9 | 1035 | 15'000 | 55,6 | 32 | 9/16″ MP(m) | 9/16″ HP(f) |
