Адаптеры JIC - HP NIPPLE
 |
 |
||
| JIC(f) - HP NIPPLE | JIC(m) - HP NIPPLE |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||

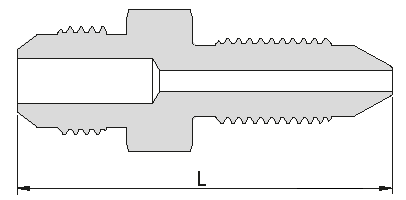

| JIC(m) - HP NIPPLE | ||||||
| A-10MJ4MN4 | 690 | 10'000 | 60,9 | 19 | 1/4″ JIC(m) | 1/4″ HP nipple |
| A-10MJ4MN6 | 690 | 10'000 | 70,6 | 22 | 1/4″ JIC(m) | 3/8″ HP nipple |
| A-10MJ4MN9 | 690 | 10'000 | 91,5 | 32 | 1/4″ JIC(m) | 9/16″ HP nipple |
| A-10MJ6MN4 | 690 | 10'000 | 62,6 | 22 | 3/8″ JIC(m) | 1/4″ HP nipple |
| A-10MJ6MN6 | 690 | 10'000 | 72,3 | 22 | 3/8″ JIC(m) | 3/8″ HP nipple |
| A-10MJ6MN9 | 690 | 10'000 | 93,2 | 32 | 3/8″ JIC(m) | 9/16″ HP nipple |
| A-10MJ8MN4 | 690 | 10'000 | 65,7 | 32 | 1/2″ JIC(m) | 1/4″ HP nipple |
| A-10MJ8MN6 | 690 | 10'000 | 75,4 | 32 | 1/2″ JIC(m) | 3/8″ HP nipple |
| A-10MJ8MN9 | 690 | 10'000 | 96,3 | 32 | 1/2″ JIC(m) | 9/16″ HP nipple |

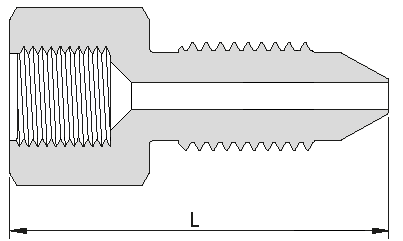

| HP NIPPLE - JIC(f) | ||||||
| A-10MN4FJ4 | 690 | 10'000 | 57,1 | 19 | 1/4″ HP nipple | 1/4″ JIC(f) |
| A-10MN4FJ6 | 690 | 10'000 | 67,6 | 22 | 1/4″ HP nipple | 3/8″ JIC(f) |
| A-10MN4FJ8 | 690 | 10'000 | 87,5 | 32 | 1/4″ HP nipple | 1/2″ JIC(f) |
| A-10MN6FJ4 | 690 | 10'000 | 59,7 | 22 | 3/8″ HP nipple | 1/4″ JIC(f) |
| A-10MN6FJ6 | 690 | 10'000 | 69,1 | 22 | 3/8″ HP nipple | 3/8″ JIC(f) |
| A-10MN6FJ8 | 690 | 10'000 | 90,0 | 32 | 3/8″ HP nipple | 1/2″ JIC(f) |
| A-10MN9FJ4 | 690 | 10'000 | 61,7 | 32 | 9/16″ HP nipple | 1/4″ JIC(f) |
| A-10MN9FJ6 | 690 | 10'000 | 71,2 | 32 | 9/16″ HP nipple | 3/8″ JIC(f) |
| A-10MN9FJ8 | 690 | 10'000 | 92,7 | 32 | 9/16″ HP nipple | 1/2″ JIC(f) |
