Адаптеры JIC - BSP
 |
 |
 |
 |
| BSP(f) - JIC(f) | BSP(m) - JIC (m) | BSP(m) - JIC(f) | JIC(m) - BSP(f) |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||

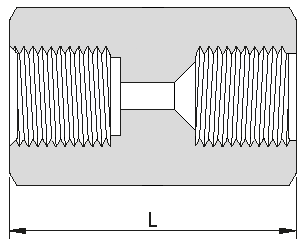

| BSP(f) - JIC(f) | ||||||
| A-10FB2FJ4 | 690 | 10'000 | 34,1 | 17 | 1/8″ BSP(f) | 1/4″ JIC(f) |
| A-10FB2FJ6 | 690 | 10'000 | 36,2 | 24 | 1/8″ BSP(f) | 3/8″ JIC(f) |
| A-10FB2FJ8 | 690 | 10'000 | 39,9 | 27 | 1/8″ BSP(f) | 1/2″ JIC(f) |
| A-10FB4FJ4 | 690 | 10'000 | 34,1 | 19 | 1/4″ BSP(f) | 1/4″ JIC(f) |
| A-10FB4FJ6 | 690 | 10'000 | 36,2 | 24 | 1/4″ BSP(f) | 3/8″ HP(f) |
| A-10FB4FJ8 | 690 | 10'000 | 39,9 | 27 | 1/4″ BSP(f) | 1/2″ JIC(f) |
| A-10FB6FJ4 | 690 | 10'000 | 36,0 | 24 | 3/8″ BSP(f) | 1/4″ JIC(f) |
| A-10FB6FJ6 | 690 | 10'000 | 36,5 | 24 | 3/8″ BSP(f) | 3/8″ JIC(f) |
| A-10FB6FJ8 | 690 | 10'000 | 40,1 | 27 | 3/8″ BSP(f) | 1/2″ JIC(f) |
| A-10FB8FJ4 | 690 | 10'000 | 41,8 | 27 | 1/2″ BSP(f) | 1/4″ JIC(f) |
| A-10FB8FJ6 | 690 | 10'000 | 44,2 | 27 | 1/2″ BSP(f) | 3/8″ JIC(f) |
| A-10FB8FJ8 | 690 | 10'000 | 46,8 | 27 | 1/2″ BSP(f) | 1/2″ JIC(f) |

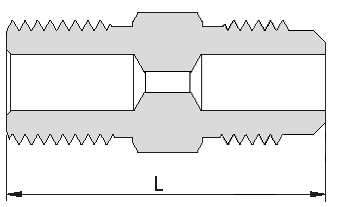

| BSP(m) - JIC(m) | ||||||
| A-10MB2MJ4 | 690 | 10'000 | 36,5 | 17 | 1/8″ BSP(m) | 1/4″ JIC(m) |
| A-10MB2MJ6 | 690 | 10'000 | 38,2 | 24 | 1/8″ BSP(m) | 3/8″ JIC(m) |
| A-10MB2MJ8 | 690 | 10'000 | 41,4 | 27 | 1/8″ BSP(m) | 1/2″ JIC(m) |
| A-10MB4MJ4 | 690 | 10'000 | 36,5 | 19 | 1/4″ BSP(m) | 1/4″ JIC(m) |
| A-10MB4MJ6 | 690 | 10'000 | 38,2 | 24 | 1/4″ BSP(m) | 3/8″ JIC(m) |
| A-10MB4MJ8 | 690 | 10'000 | 41,4 | 27 | 1/4″ BSP(m) | 1/2″ JIC(m) |
| A-10MB6MJ4 | 690 | 10'000 | 37,3 | 24 | 3/8″ BSP(m) | 1/4″ JIC(m) |
| A-10MB6MJ6 | 690 | 10'000 | 38,9 | 24 | 3/8″ BSP(m) | 3/8″ JIC(m) |
| A-10MB6MJ8 | 690 | 10'000 | 42,1 | 27 | 3/8″ BSP(m) | 1/2″ JIC(m) |
| A-10MB8MJ4 | 690 | 10'000 | 44,4 | 27 | 1/2″ BSP(m) | 1/4″ JIC(m) |
| A-10MB8MJ6 | 690 | 10'000 | 46,1 | 27 | 1/2″ BSP(m) | 3/8″ JIC(m) |
| A-10MB8MJ8 | 690 | 10'000 | 49,2 | 27 | 1/2″ BSP(m) | 1/2″ JIC(m) |
| BSP(m) - JIC(f) | ||||||
| A-10MB2FJ4 | 690 | 10'000 | 35,5 | 17 | 1/8″ BSP(m) | 1/4″ JIC(f) |
| A-10MB2FJ6 | 690 | 10'000 | 37,3 | 24 | 1/8″ BSP(m) | 3/8″ JIC(f) |
| A-10MB2FJ8 | 690 | 10'000 | 40,3 | 27 | 1/8″ BSP(m) | 1/2″ JIC(f) |
| A-10MB4FJ4 | 690 | 10'000 | 35,5 | 19 | 1/4″ BSP(m) | 1/4″ JIC(f) |
| A-10MB4FJ6 | 690 | 10'000 | 37,3 | 24 | 1/4″ BSP(m) | 3/8″ JIC(f) |
| A-10MB4FJ8 | 690 | 10'000 | 40,3 | 27 | 1/4″ BSP(m) | 1/2″ JIC(f) |
| A-10MB6FJ4 | 690 | 10'000 | 37,0 | 24 | 3/8″ BSP(m) | 1/4″ JIC(f) |
| A-10MB6FJ6 | 690 | 10'000 | 37,5 | 24 | 3/8″ BSP(m) | 3/8″ JIC(f) |
| A-10MB6FJ8 | 690 | 10'000 | 41,2 | 27 | 3/8″ BSP(m) | 1/2″ JIC(f) |
| A-10MB8FJ4 | 690 | 10'000 | 43,2 | 27 | 1/2″ BSP(m) | 1/4″ JIC(f) |
| A-10MB8FJ6 | 690 | 10'000 | 45,0 | 27 | 1/2″ BSP(m) | 3/8″ JIC(f) |
| A-10MB8FJ8 | 690 | 10'000 | 48,1 | 27 | 1/2″ BSP(m) | 1/2″ JIC(f) |

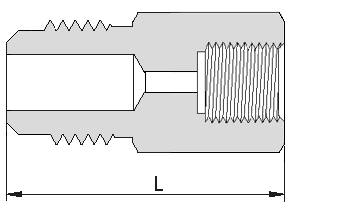

| JIC(m) - BSP(f) | ||||||
| A-10MJ4FB2 | 690 | 10'000 | 35,5 | 17 | 1/4″ JIC(m) | 1/8″ BSP(f) |
| A-10MJ4FB4 | 690 | 10'000 | 37,3 | 19 | 1/4″ JIC(m) | 1/4″ BSP(f) |
| A-10MJ4FB6 | 690 | 10'000 | 40,3 | 24 | 1/4″ JIC(m) | 3/8″ BSP(f) |
| A-10MJ4FB8 | 690 | 10'000 | 35,5 | 27 | 1/4″ JIC(m) | 1/2″ BSP(f) |
| A-10MJ6FB2 | 690 | 10'000 | 37,3 | 24 | 3/8″ JIC(m) | 1/8″ BSP(f) |
| A-10MJ6FB4 | 690 | 10'000 | 40,3 | 24 | 3/8″ JIC(m) | 1/4″ BSP(f) |
| A-10MJ6FB6 | 690 | 10'000 | 37,0 | 24 | 3/8″ JIC(m) | 3/8″ BSP(f) |
| A-10MJ6FB8 | 690 | 10'000 | 37,5 | 27 | 3/8″ JIC(m) | 1/2″ BSP(f) |
| A-10MJ8FB2 | 690 | 10'000 | 41,2 | 27 | 1/2″ JIC(m) | 1/8″ BSP(f) |
| A-10MJ8FB4 | 690 | 10'000 | 43,2 | 27 | 1/2″ JIC(m) | 1/4″ BSP(f) |
| A-10MJ8FB6 | 690 | 10'000 | 45,0 | 27 | 1/2″ JIC(m) | 3/8″ BSP(f) |
| A-10MJ8FB8 | 690 | 10'000 | 48,1 | 27 | 1/2″ JIC(m) | 1/2″ BSP(f) |
