jic-npt
Адаптеры JIC - NPT
 |
 |
 |
 |
| NPT(f) - JIC(f) | NPT(m) - JIC (m) | NPT(m) - JIC(f) | JIC(m) - NPT(f) |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||

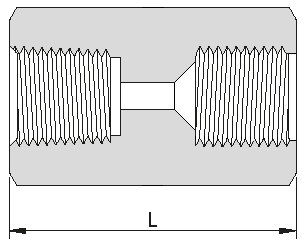

| NPT(f) - JIC(f) | ||||||
| A-10FP4FJ4 | 690 | 10'000 | 34,1 | 19 | 1/4″ NPT(f) | 1/4″ JIC(f) |
| A-10FP4FJ6 | 690 | 10'000 | 36,2 | 24 | 1/4″ NPT(f) | 3/8″ JIC(f) |
| A-10FP4FJ8 | 690 | 10'000 | 39,9 | 27 | 1/4″ NPT(f) | 1/2″ JIC(f) |
| A-10FP6FJ4 | 690 | 10'000 | 36,0 | 24 | 3/8″ NPT(f) | 1/4″ JIC(f) |
| A-10FP6FJ6 | 690 | 10'000 | 36,5 | 24 | 3/8″ NPT(f) | 3/8″ HP(f) |
| A-10FP6FJ8 | 690 | 10'000 | 40,1 | 27 | 3/8″ NPT(f) | 1/2″ JIC(f) |
| A-10FP8FJ4 | 690 | 10'000 | 41,8 | 27 | 1/2″ NPT(f) | 1/4″ JIC(f) |
| A-10FP8FJ6 | 690 | 10'000 | 44,2 | 27 | 1/2″ NPT(f) | 3/8″ JIC(f) |
| A-10FP8FJ8 | 690 | 10'000 | 46,8 | 27 | 1/2″ NPT(f) | 1/2″ JIC(f) |

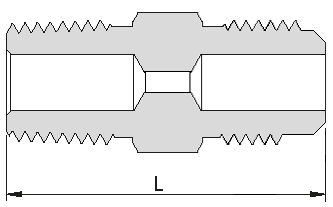

| NPT(m) - JIC(m) | ||||||
| A-10MP4MJ4 | 690 | 10'000 | 36,5 | 19 | 1/4″ NPT(m) | 1/4″ JIC(m) |
| A-10MP4MJ6 | 690 | 10'000 | 38,2 | 24 | 1/4″ NPT(m) | 3/8″ JIC(m) |
| A-10MP4MJ8 | 690 | 10'000 | 41,4 | 27 | 1/4″ NPT(m) | 1/2″ JIC(m) |
| A-10MP6MJ4 | 690 | 10'000 | 37,3 | 24 | 3/8″ NPT(m) | 1/4″ JIC(m) |
| A-10MP6MJ6 | 690 | 10'000 | 38,9 | 24 | 3/8″ NPT(m) | 3/8″ JIC(m) |
| A-10MP6MJ8 | 690 | 10'000 | 42,1 | 27 | 3/8″ NPT(m) | 1/2″ JIC(m) |
| A-10MP8MJ4 | 690 | 10'000 | 44,4 | 27 | 1/2″ NPT(m) | 1/4″ JIC(m) |
| A-10MP8MJ6 | 690 | 10'000 | 46,1 | 27 | 1/2″ NPT(m) | 3/8″ JIC(m) |
| A-10MP8MJ8 | 690 | 10'000 | 49,2 | 27 | 1/2″ NPT(m) | 1/2″ JIC(m) |
| NPT(m) - JIC(f) | ||||||
| A-10MP4FJ4 | 690 | 10'000 | 35,5 | 19 | 1/4″ NPT(m) | 1/4″ JIC(f) |
| A-10MP4FJ6 | 690 | 10'000 | 37,3 | 24 | 1/4″ NPT(m) | 3/8″ JIC(f) |
| A-10MP4FJ8 | 690 | 10'000 | 40,3 | 27 | 1/4″ NPT(m) | 1/2″ JIC(f) |
| A-10MP6FJ4 | 690 | 10'000 | 37,0 | 24 | 3/8″ NPT(m) | 1/4″ JIC(f) |
| A-10MP6FJ6 | 690 | 10'000 | 37,5 | 24 | 3/8″ NPT(m) | 3/8″ JIC(f) |
| A-10MP6FJ8 | 690 | 10'000 | 41,2 | 27 | 3/8″ NPT(m) | 1/2″ JIC(f) |
| A-10MP8FJ4 | 690 | 10'000 | 43,2 | 27 | 1/2″ NPT(m) | 1/4″ JIC(f) |
| A-10MP8FJ6 | 690 | 10'000 | 45,0 | 27 | 1/2″ NPT(m) | 3/8″ JIC(f) |
| A-10MP8FJ8 | 690 | 10'000 | 48,1 | 27 | 1/2″ NPT(m) | 1/2″ JIC(f) |

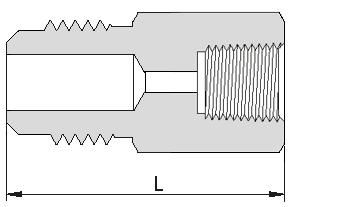

| JIC(m) - NPT(f) | ||||||
| A-10MJ4FP4 | 690 | 10'000 | 35,5 | 19 | 1/4″ JIC(m) | 1/4″ NPT(f) |
| A-10MJ4FP6 | 690 | 10'000 | 37,3 | 24 | 1/4″ JIC(m) | 3/8″ NPT(f) |
| A-10MJ4FP8 | 690 | 10'000 | 40,3 | 27 | 1/4″ JIC(m) | 1/2″ NPT(f) |
| A-10MJ6FP4 | 690 | 10'000 | 37,0 | 24 | 3/8″ JIC(m) | 1/4″ NPT(f) |
| A-10MJ6FP6 | 690 | 10'000 | 37,5 | 24 | 3/8″ JIC(m) | 3/8″ NPT(f) |
| A-10MJ6FP8 | 690 | 10'000 | 41,2 | 27 | 3/8″ JIC(m) | 1/2″ NPT(f) |
| A-10MJ8FP4 | 690 | 10'000 | 43,2 | 27 | 1/2″ JIC(m) | 1/4″ NPT(f) |
| A-10MJ8FP6 | 690 | 10'000 | 45,0 | 27 | 1/2″ JIC(m) | 3/8″ NPT(f) |
| A-10MJ8FP8 | 690 | 10'000 | 48,1 | 27 | 1/2″ JIC(m) | 1/2″ NPT(f) |
