Адаптеры JIC - MP
 |
 |
 |
 |
| MP(f) - JIC(f) | MP(m) - JIC (m) | MP(m) - JIC(f) | JIC(m) - MP(f) |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| MP(f) - JIC(f) | ||||||
| A-10FM4FJ4 | 690 | 10'000 | 38,1 | 19 | 1/4″ MP(f) | 1/4″ JIC(f) |
| A-10FM4FJ6 | 690 | 10'000 | 38,1 | 24 | 1/4″ MP(f) | 3/8″ JIC(f) |
| A-10FM4FJ8 | 690 | 10'000 | 41,5 | 27 | 1/4″ MP(f) | 1/2″ JIC(f) |
| A-10FM6FJ4 | 690 | 10'000 | 43,2 | 22 | 3/8″ MP(f) | 1/4″ JIC(f) |
| A-10FM6FJ6 | 690 | 10'000 | 43,2 | 24 | 3/8″ MP(f) | 3/8″ JIC(f) |
| A-10FM6FJ8 | 690 | 10'000 | 47,8 | 27 | 3/8″ MP(f) | 1/2″ JIC(f) |
| A-10FM9FJ4 | 690 | 10'000 | 51,0 | 32 | 9/16″ MP(f) | 1/4″ JIC(f) |
| A-10FM9FJ6 | 690 | 10'000 | 51,0 | 32 | 9/16″ MP(f) | 3/8″ JIC(f) |
| A-10FM9FJ8 | 690 | 10'000 | 54,5 | 32 | 9/16″ MP(f) | 1/2″ JIC(f) |

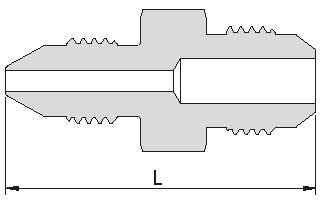

| MP(m) - JIC(m) | ||||||
| A-10MM4MJ4 | 690 | 10'000 | 39,7 | 19 | 1/4″ MP(m) | 1/4″ JIC(m) |
| A-10MM4MJ6 | 690 | 10'000 | 39,7 | 24 | 1/4″ MP(m) | 3/8″ JIC(m) |
| A-10MM4MJ8 | 690 | 10'000 | 42,9 | 27 | 1/4″ MP(m) | 1/2″ JIC(m) |
| A-10MM6MJ4 | 690 | 10'000 | 46,0 | 22 | 3/8″ MP(m) | 1/4″ JIC(m) |
| A-10MM6MJ6 | 690 | 10'000 | 46,0 | 24 | 3/8″ MP(m) | 3/8″ JIC(m) |
| A-10MM6MJ8 | 690 | 10'000 | 49,2 | 27 | 3/8″ MP(m) | 1/2″ JIC(m) |
| A-10MM9MJ4 | 690 | 10'000 | 54,0 | 32 | 9/16″ MP(m) | 1/4″ JIC(m) |
| A-10MM9MJ6 | 690 | 10'000 | 54,0 | 32 | 9/16″ MP(m) | 3/8″ JIC(m) |
| A-10MM9MJ8 | 690 | 10'000 | 57,2 | 32 | 9/16″ MP(m) | 1/2″ JIC(m) |

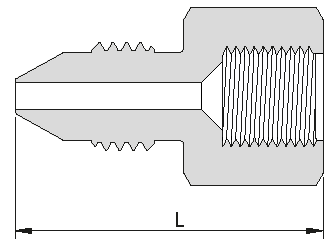

| MP(m) - JIC(f) | ||||||
| A-10MM4FJ4 | 690 | 10'000 | 38,7 | 19 | 1/4″ MP(m) | 1/4″ JIC(f) |
| A-10MM4FJ6 | 690 | 10'000 | 38,7 | 24 | 1/4″ MP(m) | 3/8″ JIC(f) |
| A-10MM4FJ8 | 690 | 10'000 | 41,9 | 27 | 1/4″ MP(m) | 1/2″ JIC(f) |
| A-10MM6FJ4 | 690 | 10'000 | 44,7 | 22 | 3/8″ MP(m) | 1/4″ JIC(f) |
| A-10MM6FJ6 | 690 | 10'000 | 44,7 | 24 | 3/8″ MP(m) | 3/8″ JIC(f) |
| A-10MM6FJ8 | 690 | 10'000 | 48,3 | 27 | 3/8″ MP(m) | 1/2″ JIC(f) |
| A-10MM9FJ4 | 690 | 10'000 | 52,3 | 32 | 9/16″ MP(m) | 1/4″ JIC(f) |
| A-10MM9FJ6 | 690 | 10'000 | 52,3 | 32 | 9/16″ MP(m) | 3/8″ JIC(f) |
| A-10MM9FJ8 | 690 | 10'000 | 56,0 | 32 | 9/16″ MP(m) | 1/2″ JIC(f) |
| JIC(m) - MP(f) | ||||||
| A-10MJ4FM4 | 690 | 10'000 | 38,7 | 19 | 1/4″ JIC(m) | 1/4″ MP(f) |
| A-10MJ4FM6 | 690 | 10'000 | 38,7 | 22 | 1/4″ JIC(m) | 3/8″ MP(f) |
| A-10MJ4FM9 | 690 | 10'000 | 41,9 | 32 | 1/4″ JIC(m) | 9/16″ MP(f) |
| A-10MJ6FM4 | 690 | 10'000 | 44,7 | 24 | 3/8″ JIC(m) | 1/4″ MP(f) |
| A-10MJ6FM6 | 690 | 10'000 | 44,7 | 24 | 3/8″ JIC(m) | 3/8″ MP(f) |
| A-10MJ6FM9 | 690 | 10'000 | 48,3 | 32 | 3/8″ JIC(m) | 9/16″ MP(f) |
| A-10MJ8FM4 | 690 | 10'000 | 52,3 | 27 | 1/2″ JIC(m) | 1/4″ MP(f) |
| A-10MJ8FM6 | 690 | 10'000 | 52,3 | 27 | 1/2″ JIC(m) | 3/8″ MP(f) |
| A-10MJ8FM9 | 690 | 10'000 | 56,0 | 32 | 1/2″ JIC(m) | 9/16″ MP(f) |
