Адаптеры JIC - HP
 |
 |
 |
 |
| HP(f) - JIC(f) | HP(m) - JIC (m) | HP(m) - JIC(f) | JIC(m) - HP(f) |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||
| HP(f) - JIC(f) | ||||||
| A-10FH4FJ4 | 690 | 10'000 | 38,1 | 19 | 1/4″ HP(f) | 1/4″ JIC(f) |
| A-10FH4FJ6 | 690 | 10'000 | 38,1 | 24 | 1/4″ HP(f) | 3/8″ JIC(f) |
| A-10FH4FJ8 | 690 | 10'000 | 41,5 | 27 | 1/4″ HP(f) | 1/2″ JIC(f) |
| A-10FH6FJ4 | 690 | 10'000 | 43,2 | 22 | 3/8″ HP(f) | 1/4″ JIC(f) |
| A-10FH6FJ6 | 690 | 10'000 | 43,2 | 24 | 3/8″ HP(f) | 3/8″ HP(f) |
| A-10FH6FJ8 | 690 | 10'000 | 47,8 | 27 | 3/8″ HP(f) | 1/2″ JIC(f) |
| A-10FH9FJ4 | 690 | 10'000 | 51,0 | 32 | 9/16″ HP(f) | 1/4″ JIC(f) |
| A-10FH9FJ6 | 690 | 10'000 | 51,0 | 32 | 9/16″ HP(f) | 3/8″ JIC(f) |
| A-10FH9FJ8 | 690 | 10'000 | 54,5 | 32 | 9/16″ HP(f) | 1/2″ JIC(f) |

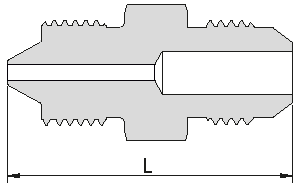

| HP(m) - JIC(m) | ||||||
| A-10MH4MJ4 | 690 | 10'000 | 39,7 | 19 | 1/4″ HP(m) | 1/4″ JIC(m) |
| A-10MH4MJ6 | 690 | 10'000 | 39,7 | 24 | 1/4″ HP(m) | 3/8″ JIC(m) |
| A-10MH4MJ8 | 690 | 10'000 | 42,9 | 27 | 1/4″ HP(m) | 1/2″ JIC(m) |
| A-10MH6MJ4 | 690 | 10'000 | 46,0 | 22 | 3/8″ HP(m) | 1/4″ JIC(m) |
| A-10MH6MJ6 | 690 | 10'000 | 46,0 | 24 | 3/8″ HP(m) | 3/8″ JIC(m) |
| A-10MH6MJ8 | 690 | 10'000 | 49,2 | 27 | 3/8″ HP(m) | 1/2″ JIC(m) |
| A-10MH9MJ4 | 690 | 10'000 | 54,0 | 32 | 9/16″ HP(m) | 1/4″ JIC(m) |
| A-10MH9MJ6 | 690 | 10'000 | 54,0 | 32 | 9/16″ HP(m) | 3/8″ JIC(m) |
| A-10MH9MJ8 | 690 | 10'000 | 57,2 | 32 | 9/16″ HP(m) | 1/2″ JIC(m) |
| HP(m) - JIC(f) | ||||||
| A-10MH4FJ4 | 690 | 10'000 | 38,7 | 19 | 1/4″ HP(m) | 1/4″ JIC(f) |
| A-10MH4FJ6 | 690 | 10'000 | 38,7 | 24 | 1/4″ HP(m) | 3/8″ JIC(f) |
| A-10MH4FJ8 | 690 | 10'000 | 41,9 | 27 | 1/4″ HP(m) | 1/2″ JIC(f) |
| A-10MH6FJ4 | 690 | 10'000 | 44,7 | 22 | 3/8″ HP(m) | 1/4″ JIC(f) |
| A-10MH6FJ6 | 690 | 10'000 | 44,7 | 24 | 3/8″ HP(m) | 3/8″ JIC(f) |
| A-10MH6FJ8 | 690 | 10'000 | 48,3 | 27 | 3/8″ HP(m) | 1/2″ JIC(f) |
| A-10MH9FJ4 | 690 | 10'000 | 52,3 | 32 | 9/16″ HP(m) | 1/4″ JIC(f) |
| A-10MH9FJ6 | 690 | 10'000 | 52,3 | 32 | 9/16″ HP(m) | 3/8″ JIC(f) |
| A-10MH9FJ8 | 690 | 10'000 | 56,0 | 32 | 9/16″ HP(m) | 1/2″ JIC(f) |

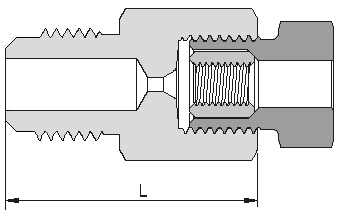

| JIC(m) - HP(f) | ||||||
| A-10MJ4FH4 | 690 | 10'000 | 38,7 | 19 | 1/4″ JIC(m) | 1/4″ HP(f) |
| A-10MJ4FH6 | 690 | 10'000 | 38,7 | 22 | 1/4″ JIC(m) | 3/8″ HP(f) |
| A-10MJ4FH9 | 690 | 10'000 | 41,9 | 32 | 1/4″ JIC(m) | 9/16″ HP(f) |
| A-10MJ6FH4 | 690 | 10'000 | 44,7 | 24 | 3/8″ JIC(m) | 1/4″ HP(f) |
| A-10MJ6FH6 | 690 | 10'000 | 44,7 | 24 | 3/8″ JIC(m) | 3/8″ HP(f) |
| A-10MJ6FH9 | 690 | 10'000 | 48,3 | 32 | 3/8″ JIC(m) | 9/16″ HP(f) |
| A-10MJ8FH4 | 690 | 10'000 | 52,3 | 27 | 1/2″ JIC(m) | 1/4″ HP(f) |
| A-10MJ8FH6 | 690 | 10'000 | 52,3 | 27 | 1/2″ JIC(m) | 3/8″ HP(f) |
| A-10MJ8FH9 | 690 | 10'000 | 56,0 | 32 | 1/2″ JIC(m) | 9/16″ HP(f) |
