Адаптеры JIC - JIC
 |
 |
 |
|
| JIC(f) - JIC(f) | JIC(m) - JIC (m) | JIC(m) - JIC(f) |
| Артикул | Рабочее давление | Длина | Размер под ключ | Резьба 1 | Резьба 2 | |
| бар | psi | L, мм | мм | |||

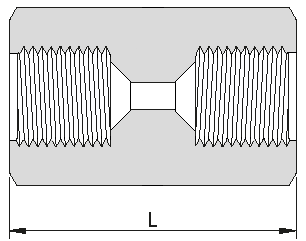

| JIC(f) - JIC(f) | ||||||
| A-10FJ4FJ4 | 690 | 10'000 | 33,1 | 19 | 1/4″ JIC(f) | 1/4″ JIC(f) |
| A-10FJ4FJ6 | 690 | 10'000 | 34,9 | 24 | 1/4″ JIC(f) | 3/8″ JIC(f) |
| A-10FJ4FJ8 | 690 | 10'000 | 38,3 | 27 | 1/4″ JIC(f) | 1/2″ JIC(f) |
| A-10FJ6FJ6 | 690 | 10'000 | 37,0 | 24 | 3/8″ JIC(f) | 3/8″ HP(f) |
| A-10FJ6FJ8 | 690 | 10'000 | 39,1 | 27 | 3/8″ JIC(f) | 1/2″ JIC(f) |
| A-10FJ8FJ8 | 690 | 10'000 | 41,0 | 27 | 1/2″ JIC(f) | 1/2″ JIC(f) |

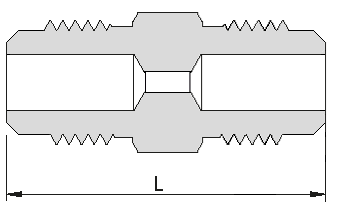

| JIC(m) - JIC(m) | ||||||
| A-10MJ4MJ4 | 690 | 10'000 | 34,9 | 19 | 1/4″ JIC(m) | 1/4″ JIC(m) |
| A-10MJ4MJ6 | 690 | 10'000 | 36,6 | 24 | 1/4″ JIC(m) | 3/8″ JIC(m) |
| A-10MJ4MJ8 | 690 | 10'000 | 39,7 | 27 | 1/4″ JIC(m) | 1/2″ JIC(m) |
| A-10MJ6MJ6 | 690 | 10'000 | 38,2 | 24 | 3/8″ JIC(m) | 3/8″ JIC(m) |
| A-10MJ6MJ8 | 690 | 10'000 | 41,4 | 27 | 3/8″ JIC(m) | 1/2″ JIC(m) |
| A-10MJ8MJ8 | 690 | 10'000 | 44,5 | 27 | 1/2″ JIC(m) | 1/2″ JIC(m) |

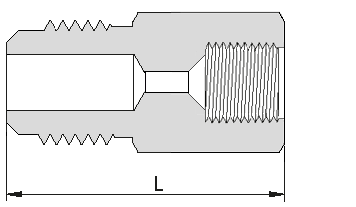

| JIC(m) - JIC(f) | ||||||
| A-10MJ4FJ4 | 690 | 10'000 | 34,2 | 19 | 1/4″ JIC(m) | 1/4″ JIC(f) |
| A-10MJ4FJ6 | 690 | 10'000 | 35,9 | 24 | 1/4″ JIC(m) | 3/8″ JIC(f) |
| A-10MJ4FJ8 | 690 | 10'000 | 38,9 | 27 | 1/4″ JIC(m) | 1/2″ JIC(f) |
| A-10MJ6FJ4 | 690 | 10'000 | 36,2 | 24 | 3/8″ JIC(m) | 1/4″ JIC(f) |
| A-10MJ6FJ6 | 690 | 10'000 | 37,9 | 24 | 3/8″ JIC(m) | 3/8″ JIC(f) |
| A-10MJ6FJ8 | 690 | 10'000 | 40,7 | 27 | 3/8″ JIC(m) | 1/2″ JIC(f) |
| A-10MJ8FJ4 | 690 | 10'000 | 39,0 | 27 | 1/2″ JIC(m) | 1/4″ JIC(f) |
| A-10MJ8FJ6 | 690 | 10'000 | 41,0 | 27 | 1/2″ JIC(m) | 3/8″ JIC(f) |
| A-10MJ8FJ8 | 690 | 10'000 | 43,0 | 27 | 1/2″ JIC(m) | 1/2″ JIC(f) |
